CNC Machine Tools
Below are a few sample designs, click on the image for a detail picture:

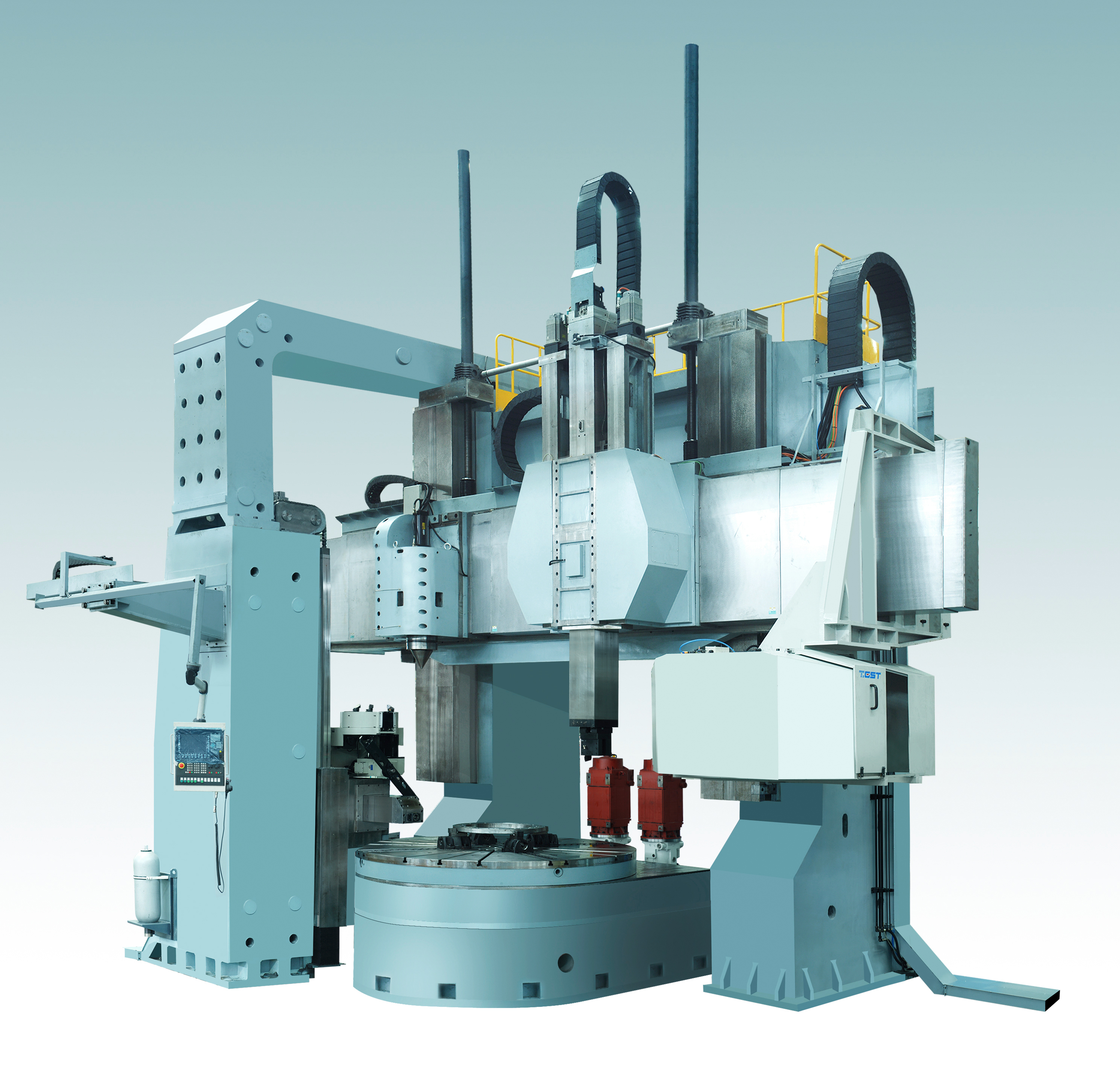

CNCPicture1.JPG  5 Axis CNC Vertical Turning Lathe with 3,000 mm Table Diameter

  • “X” and “Z” Axis head with Automatic Tool Changer with a total of 24 nests for turning and live tools.
  • Side column for “Y” and “W” Axis head with Automatic Tool Changer for 12 tools.
  • Tailstock for tall parts up to 3,000 mm high.
  • “C” Axis provided with two main spindle motors to eliminate backlash and provide accurate interpolation.
  • Movable Cross Rail for positioning on various parts and locking them in place.
  • FIELDS OF USAGE
    The VTL is suitable for machining up to 3m high electric motor rotor, wind turbine main bearing housing and large parts for nuclear reactors.

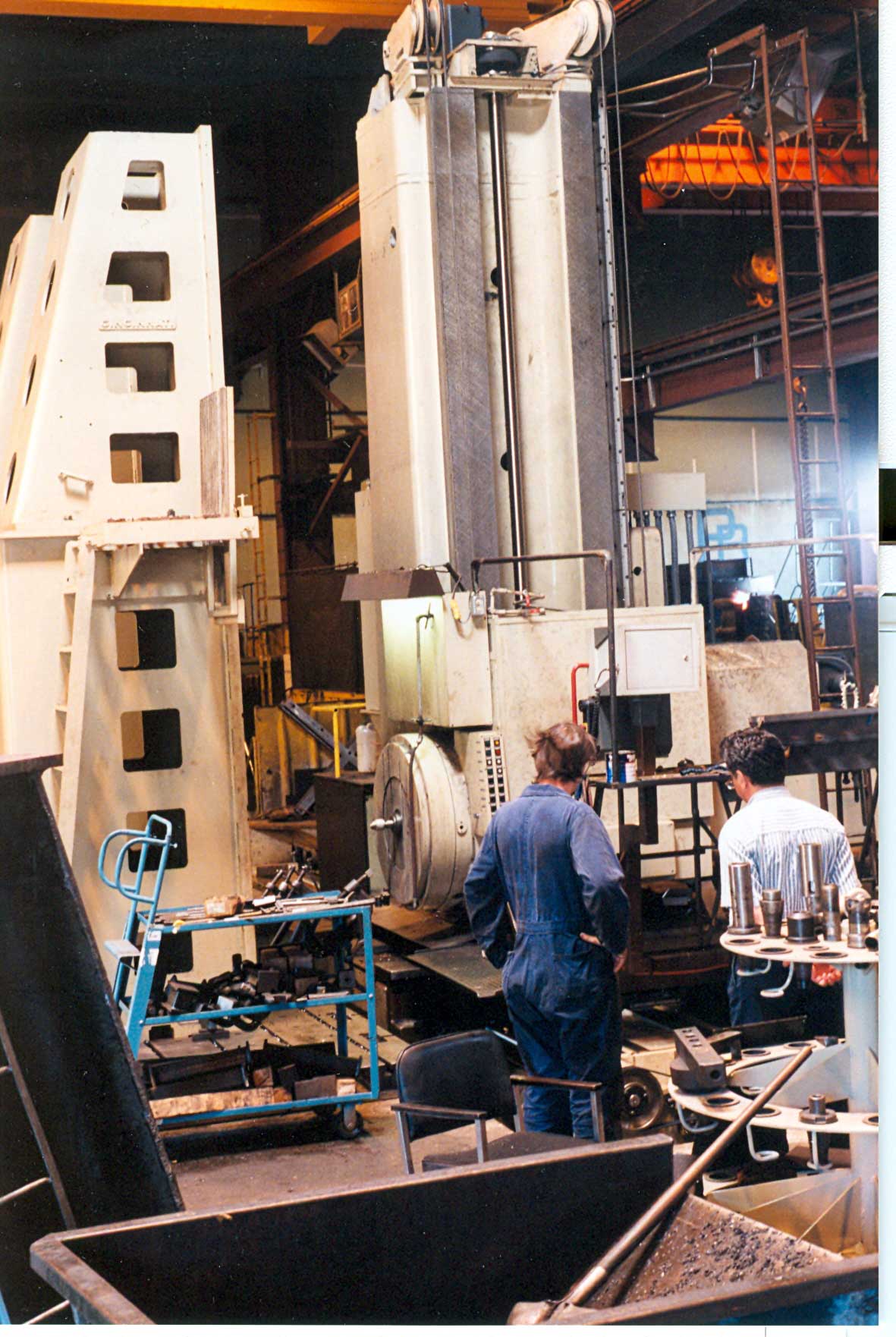

CNCPicture3.JPG  120 mm Horizontal Boring Mill Machine Retrofit

  • Replaced Conventional Axis with 4 CNC.
  • Replaced physical 5 ton counterbalance with hydraulic cylinder.
  • Add 520 mm on the column to increase the vertical travel to 12 feet.
  • Increase the main spindle speed from 520 RPM to 1,200 RPM by changing the bearings and lubrication.
  • Replaced manual gear shift with hydraulic indexer.

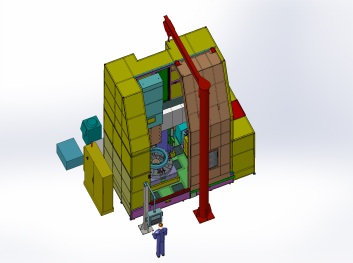

CNCPicture2.JPG  3 Axis CNC Vertical Turning Lathe with 1,500 mm Table Diameter

  • Fix Cross Rail.
  • Ram with Live Spindle.
  • “C” Axis assembly unit.
  • Automatic Tool Changer for a total of 24, 12 turning and 12 live tools.
  • FIELDS OF USAGE
    The VTL is suitable for machining rings made of aluminum and plastic for electric motor collector.

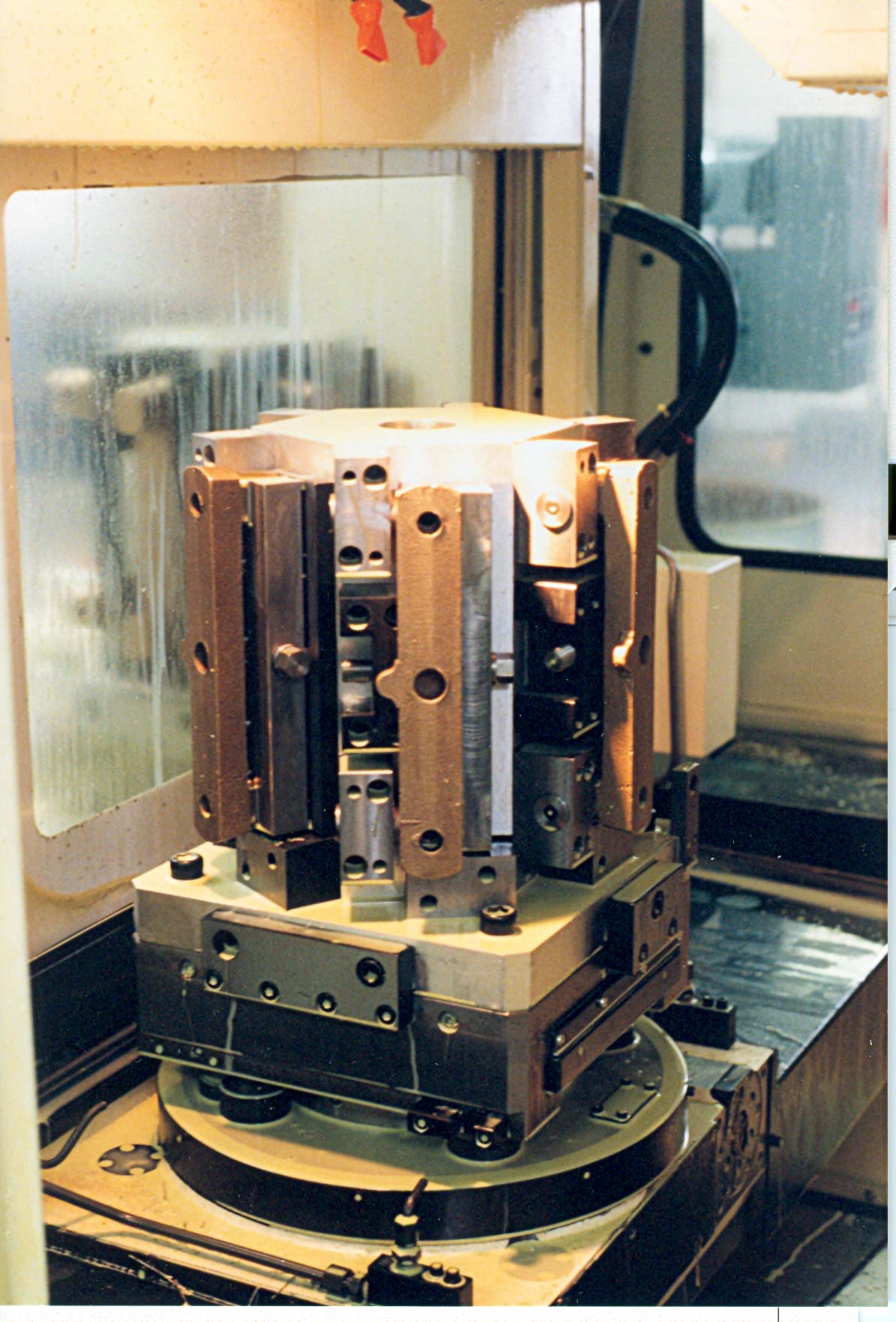

Manual clamping fixture for Horizontal CNC Machine Centre with pallet changer for brass taps

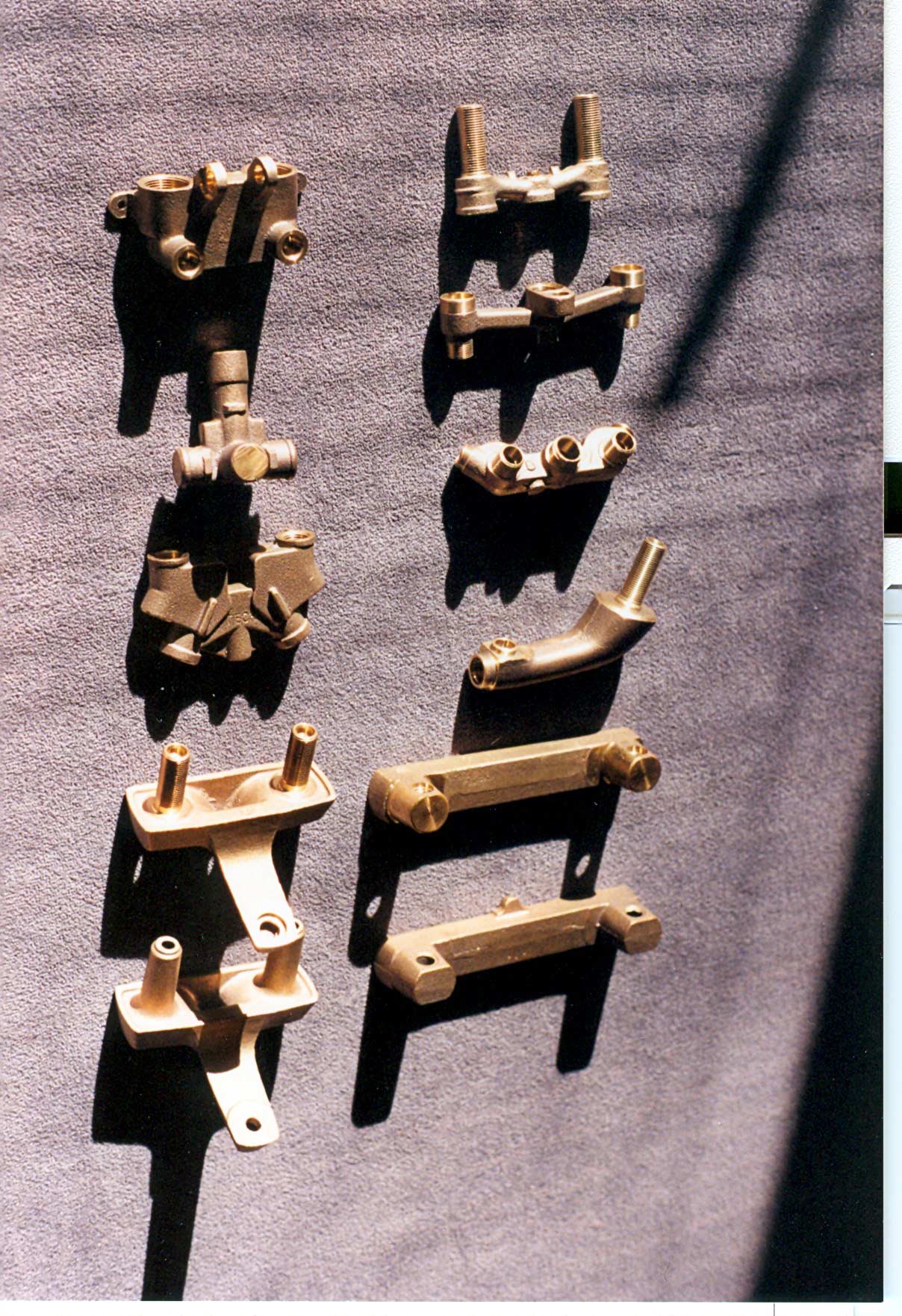

CNCPicture5.JPG  There are two fixtures for each size

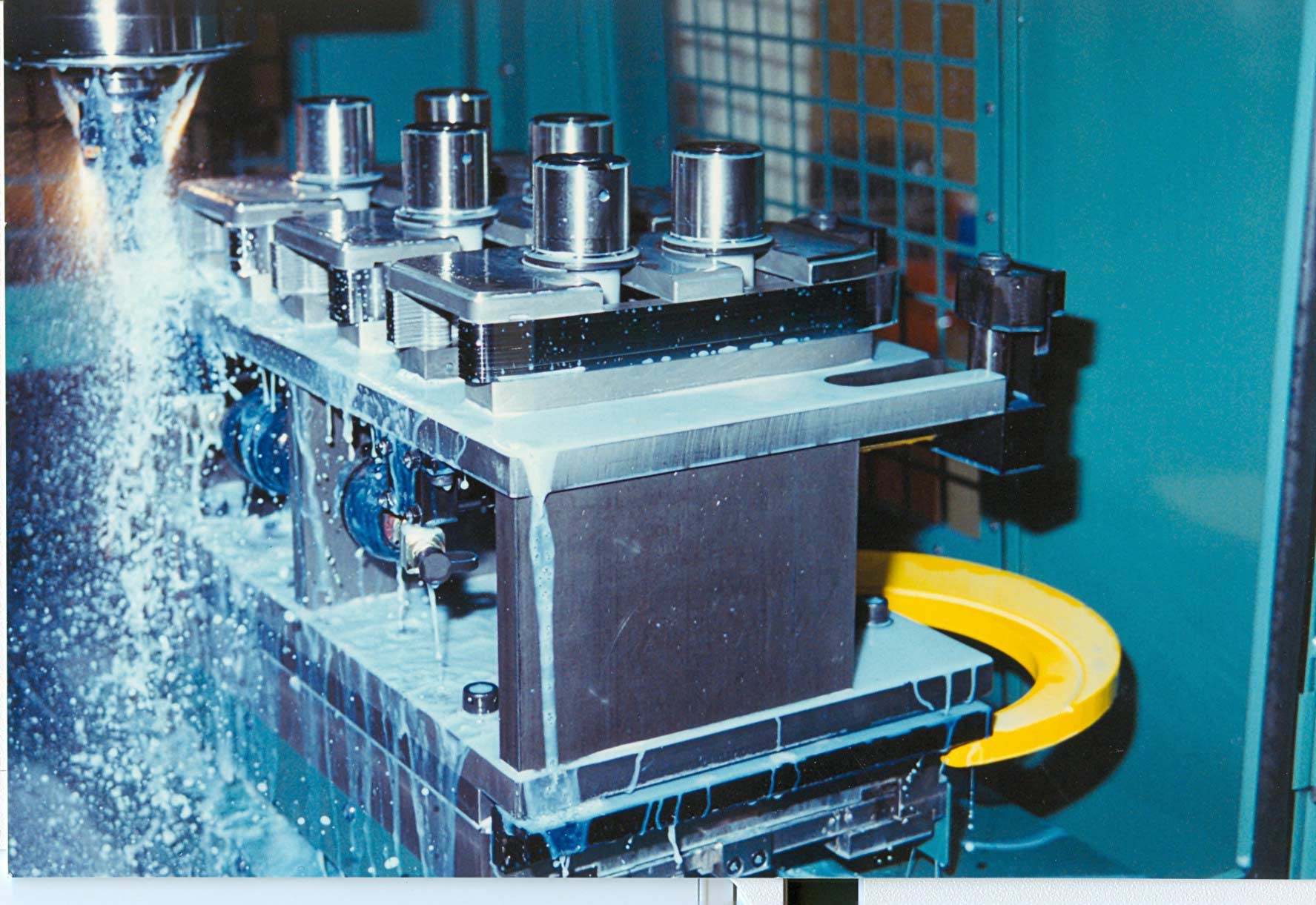

Hydraulic clamping for Vertical CNC Machine Centre with pallet changer for ice skate blades, 11 blades stacked on each double fixture, 3 fixtures per pallet.

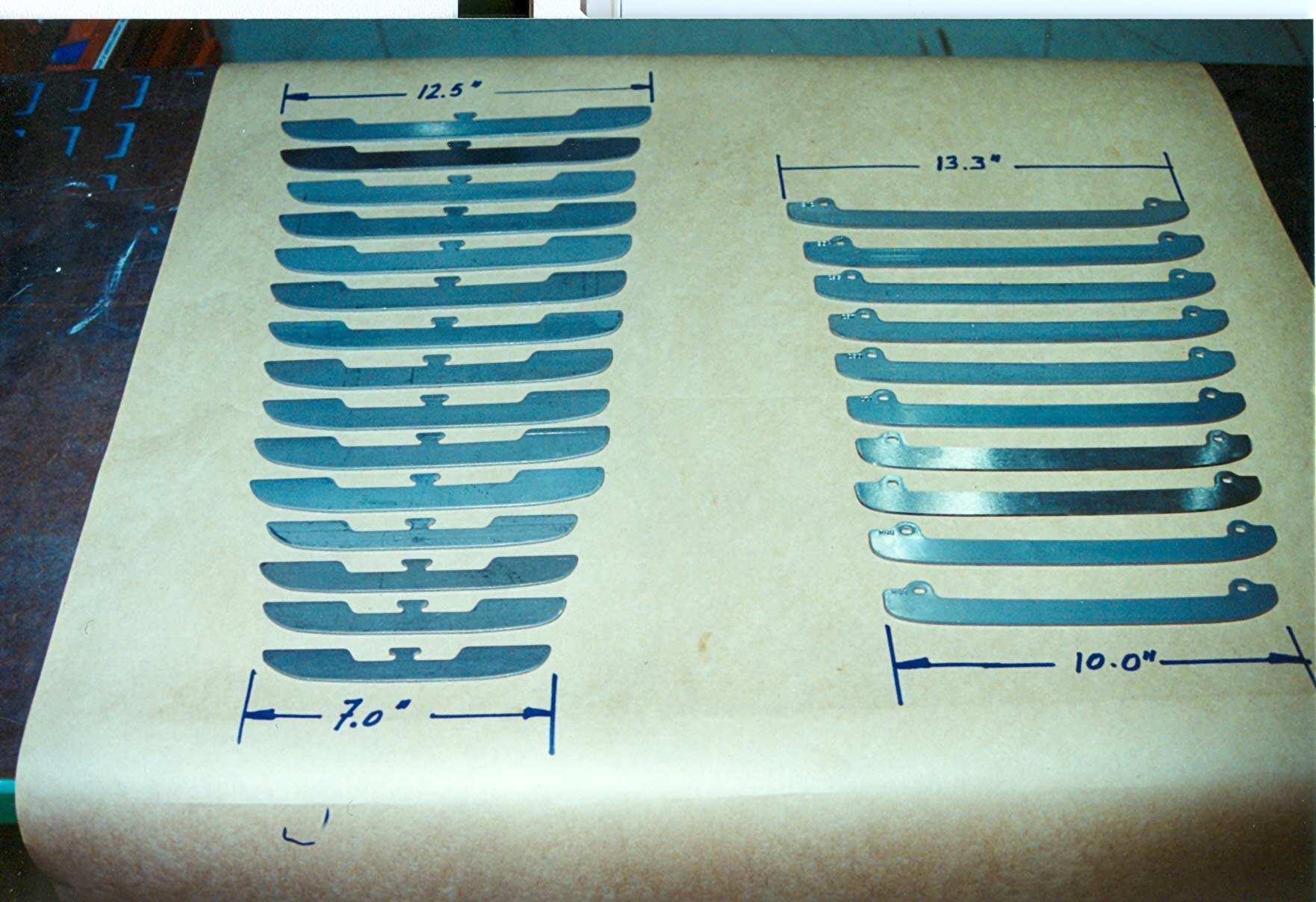

CNCPicture7.JPG  There are two blade designs and the fixtures fit them all
