Custom Machine Design
Below are a few sample designs, click on the image for a detail picture:

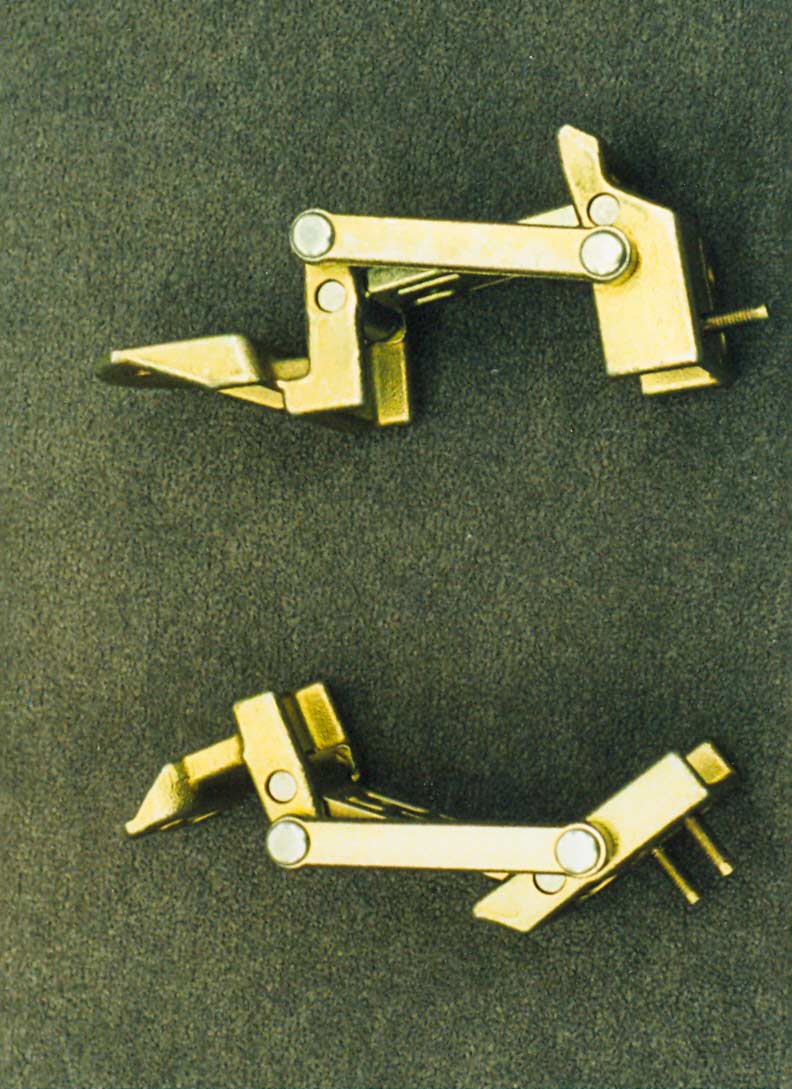

Custom Picture 23  Customer Hinge Assembly

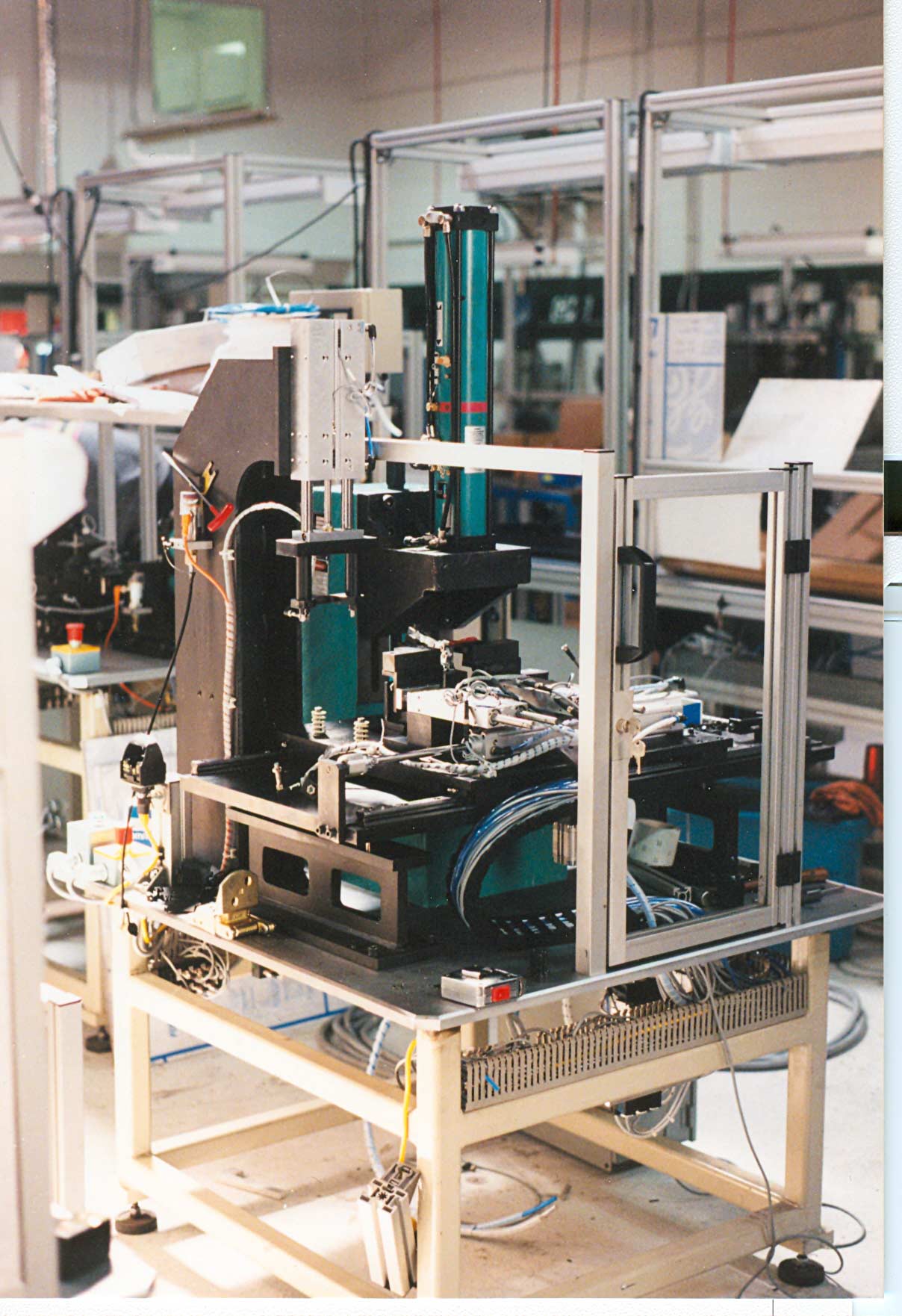

Custom Picture 22.jpg  Hinge Assembly Station for cars and trucks

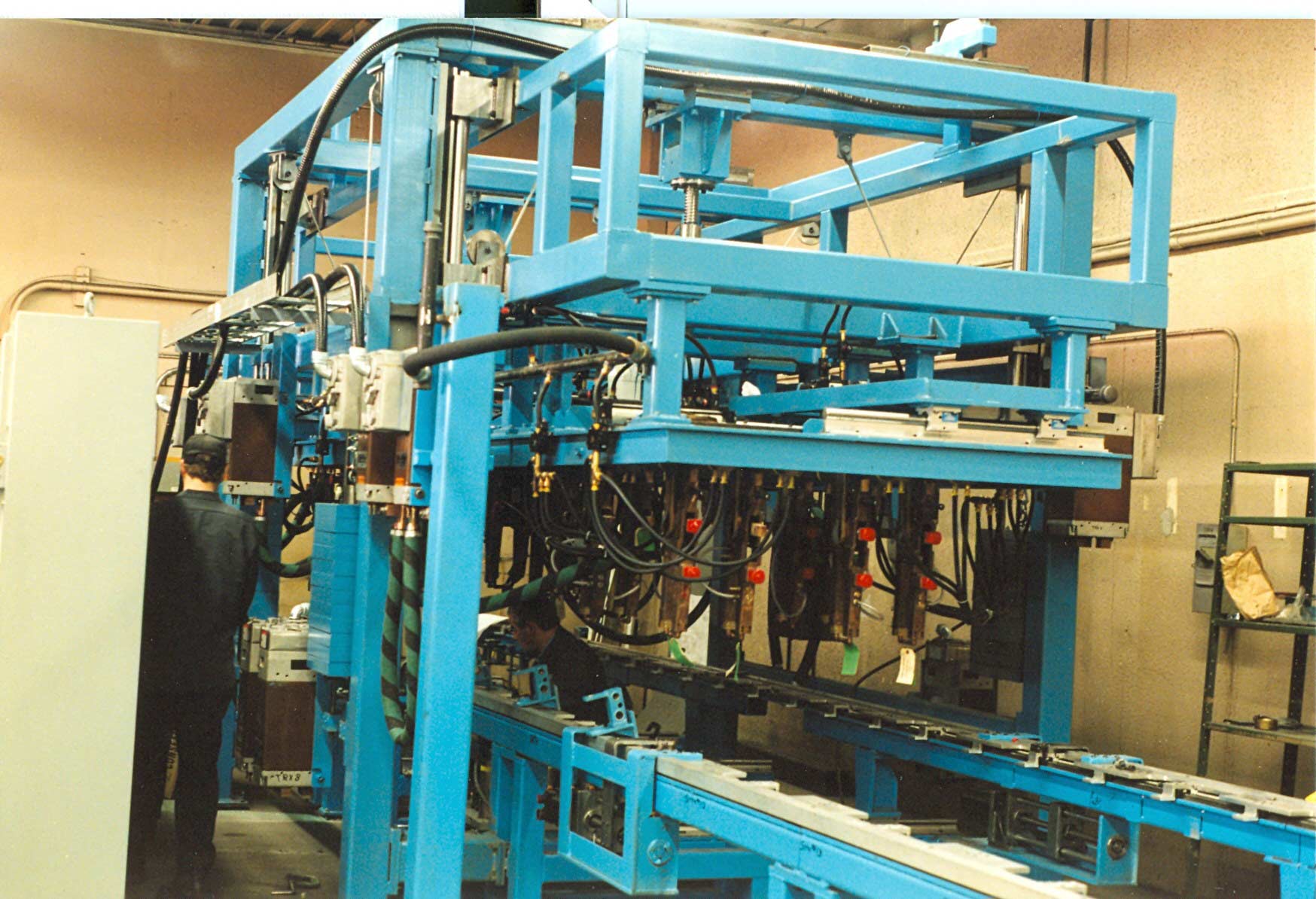

Custom Picture 24.JPG  Spot Welding Line for 22 drawer sizes for tool box

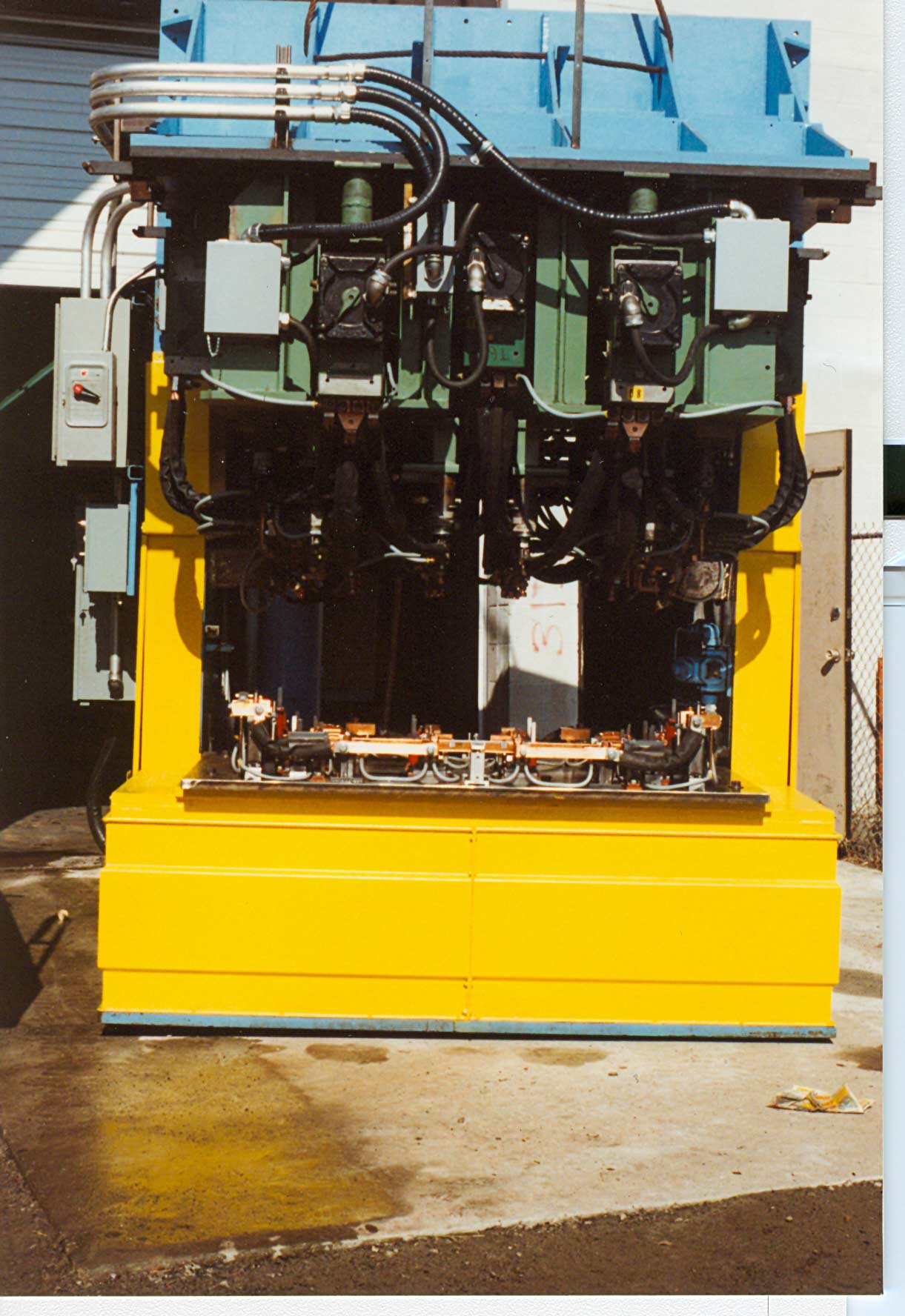

Custom Picture 25.JPG  Spot Welding Tooling for existing machine for Lincoln Back Seat

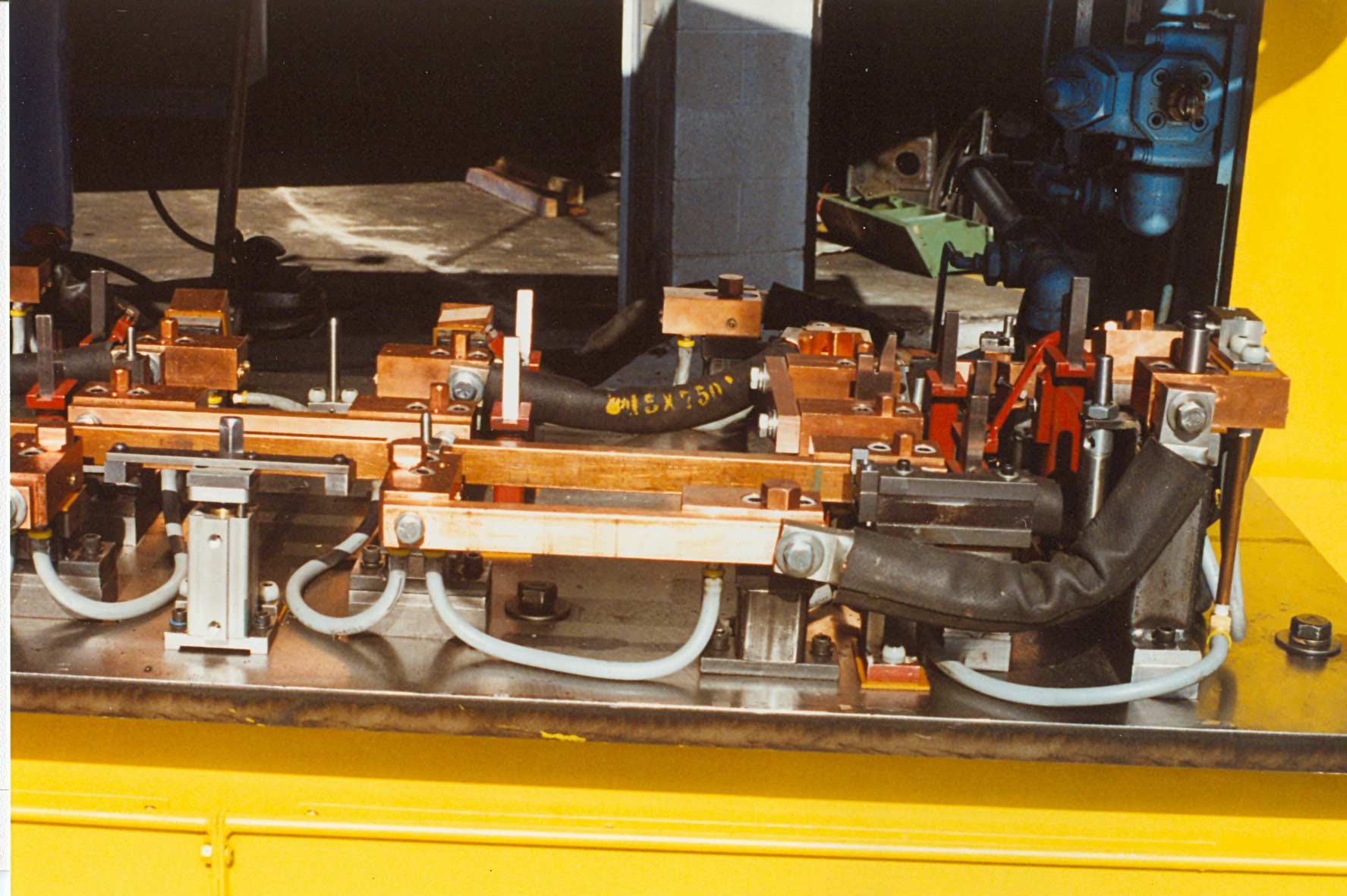

Custom Picture 26.JPG  Close-up of welding fixture

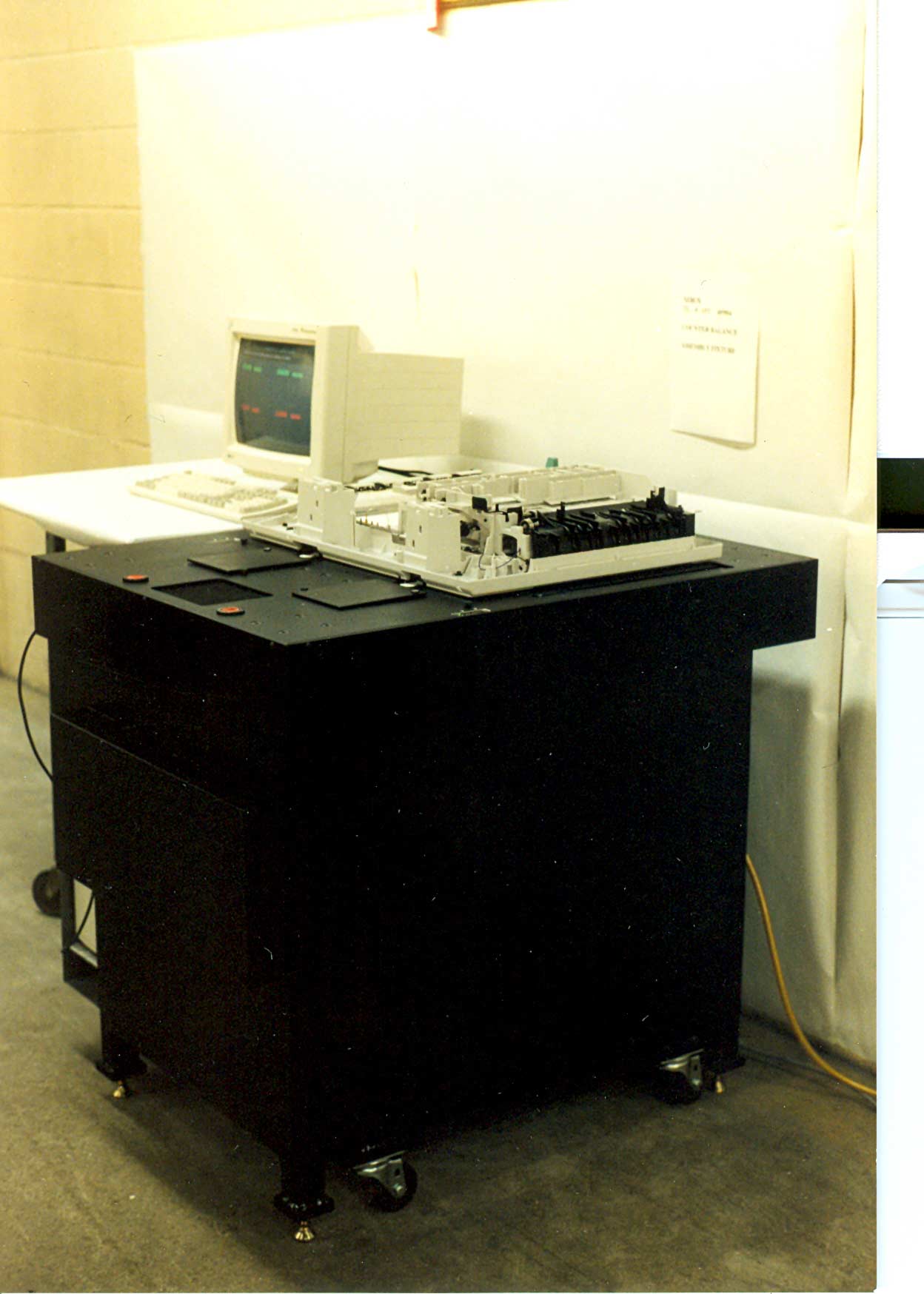

Custom Picture 27.JPG

Assembly Station for Cover and Hinges for copier using 4 sensors to control the correct placement of the hinge

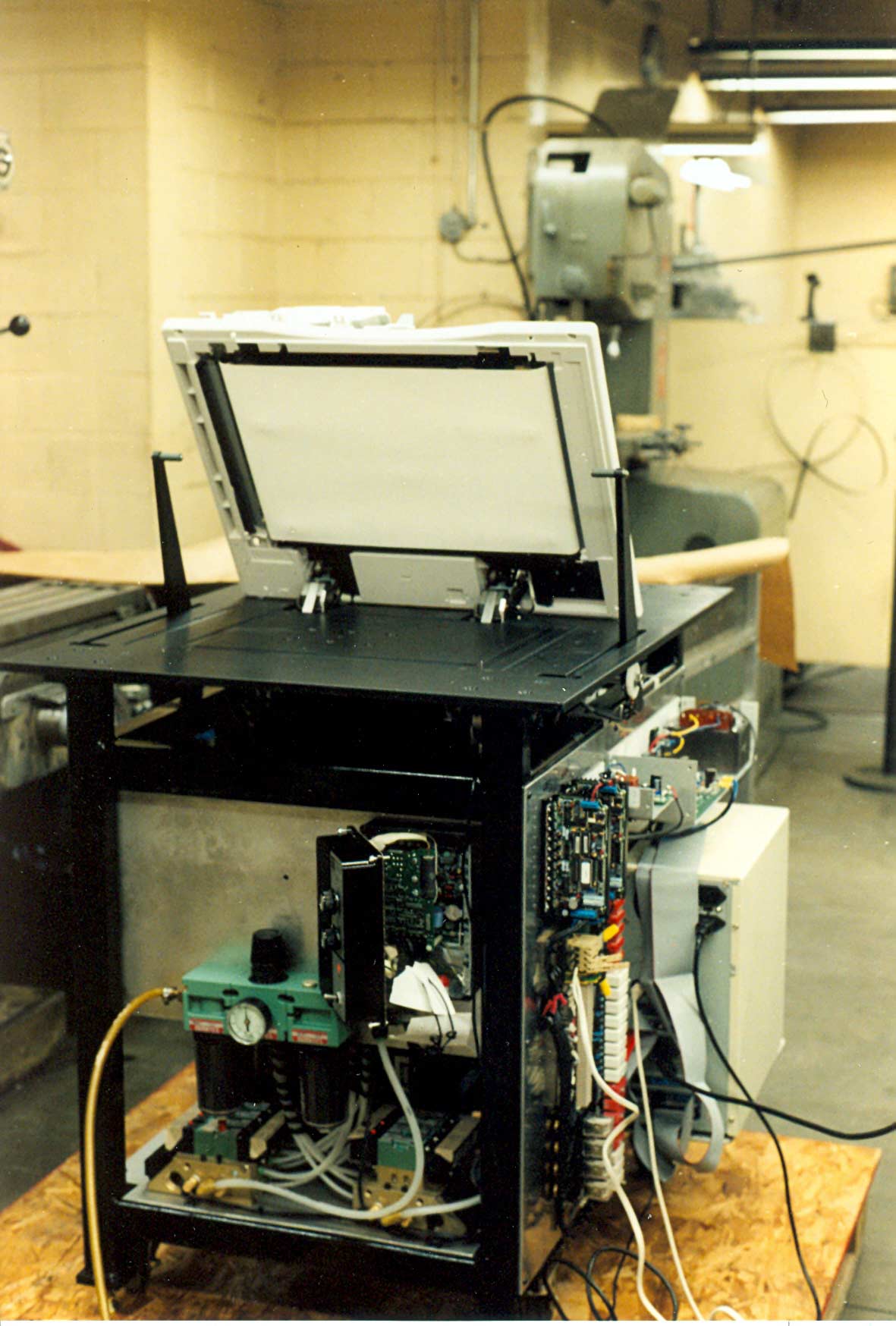

Custom Picture 28.JPG  Assembly station for Cover and Hinges in loading/unloading position

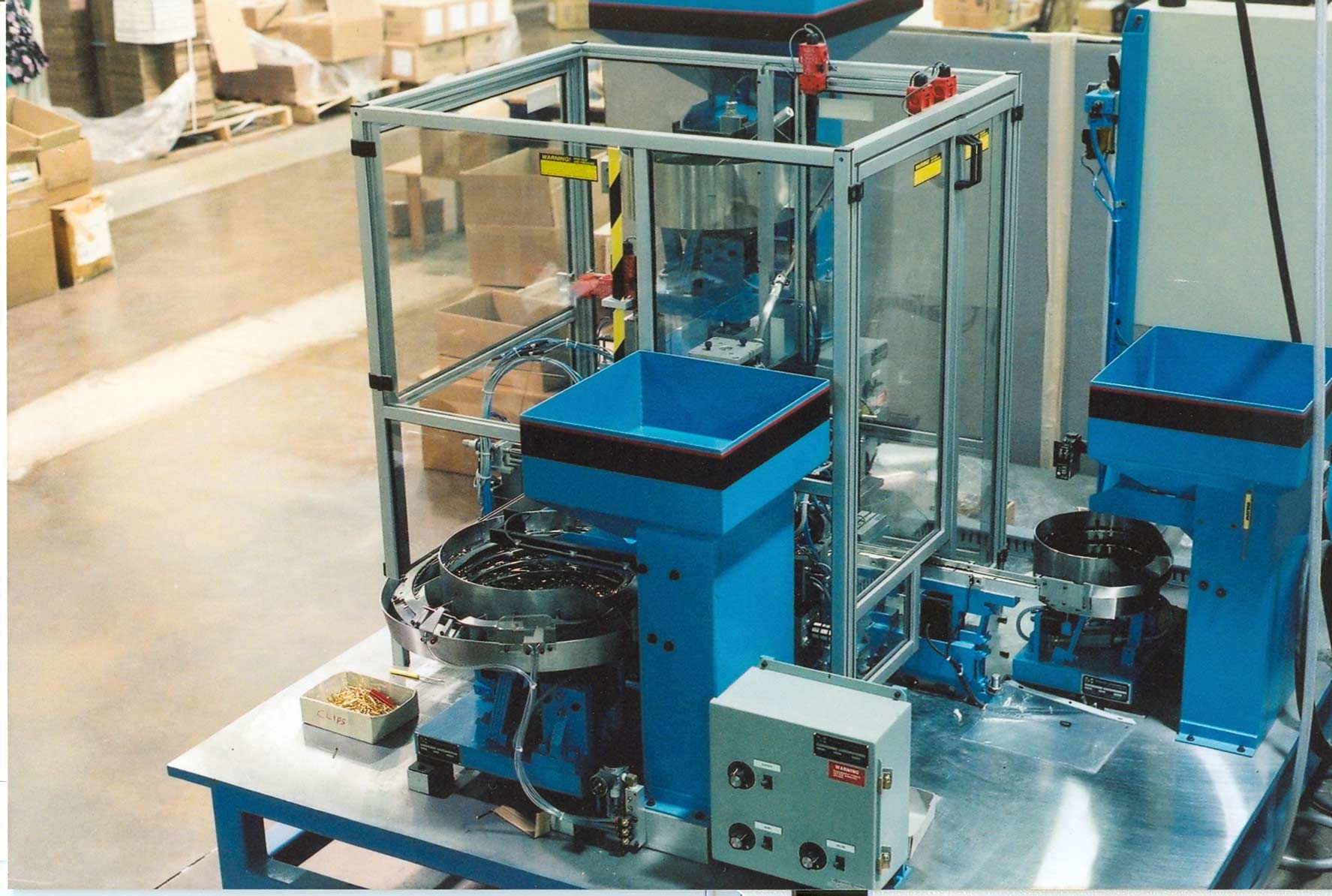

Custom Picture 29.JPG  Pen Cover Automatic Assembly Machine with 6 stations and 3 bowl feeders

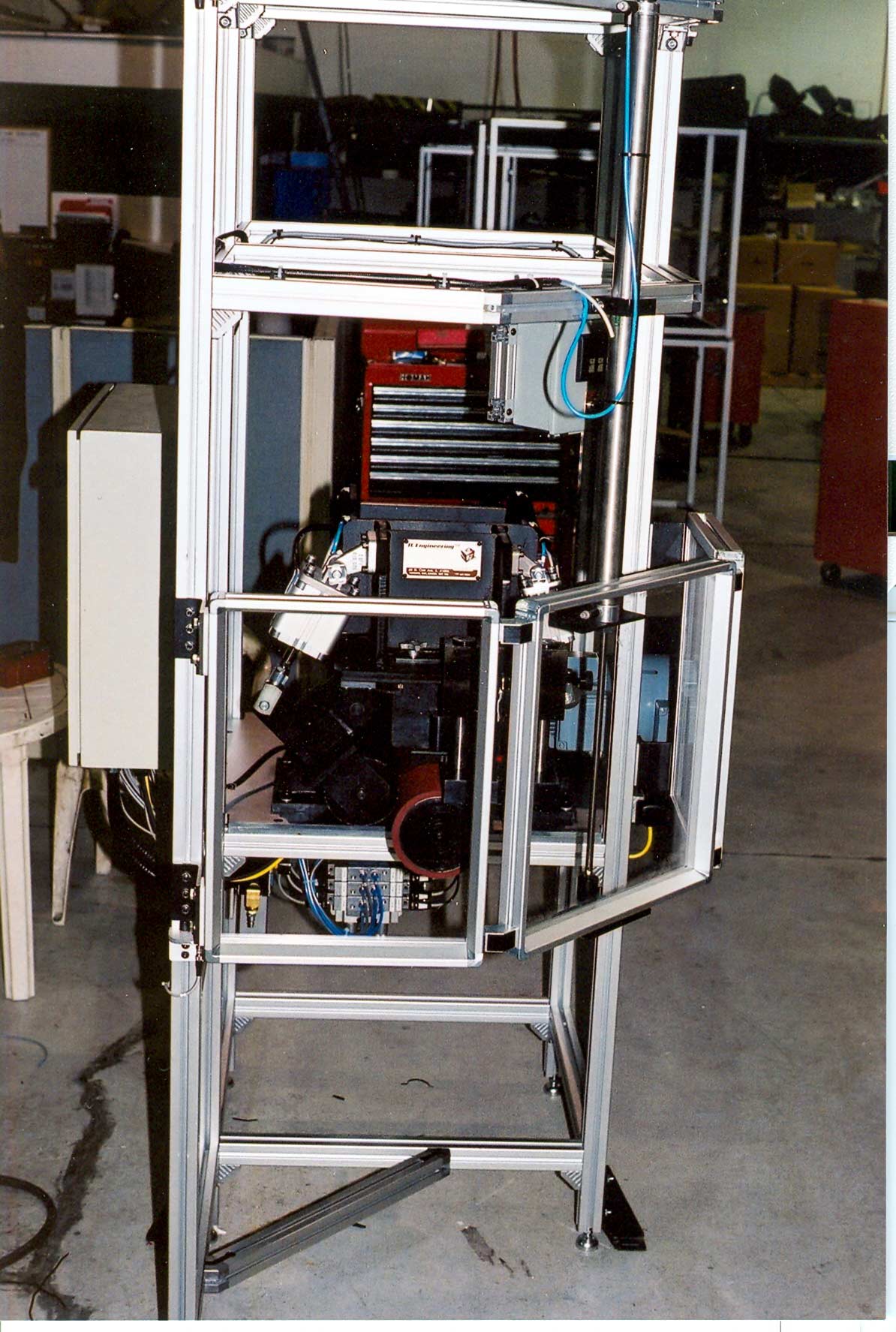

Custom Picture 30.JPG  Timing Belt slit machine designed and built by TC Engineering Ltd.

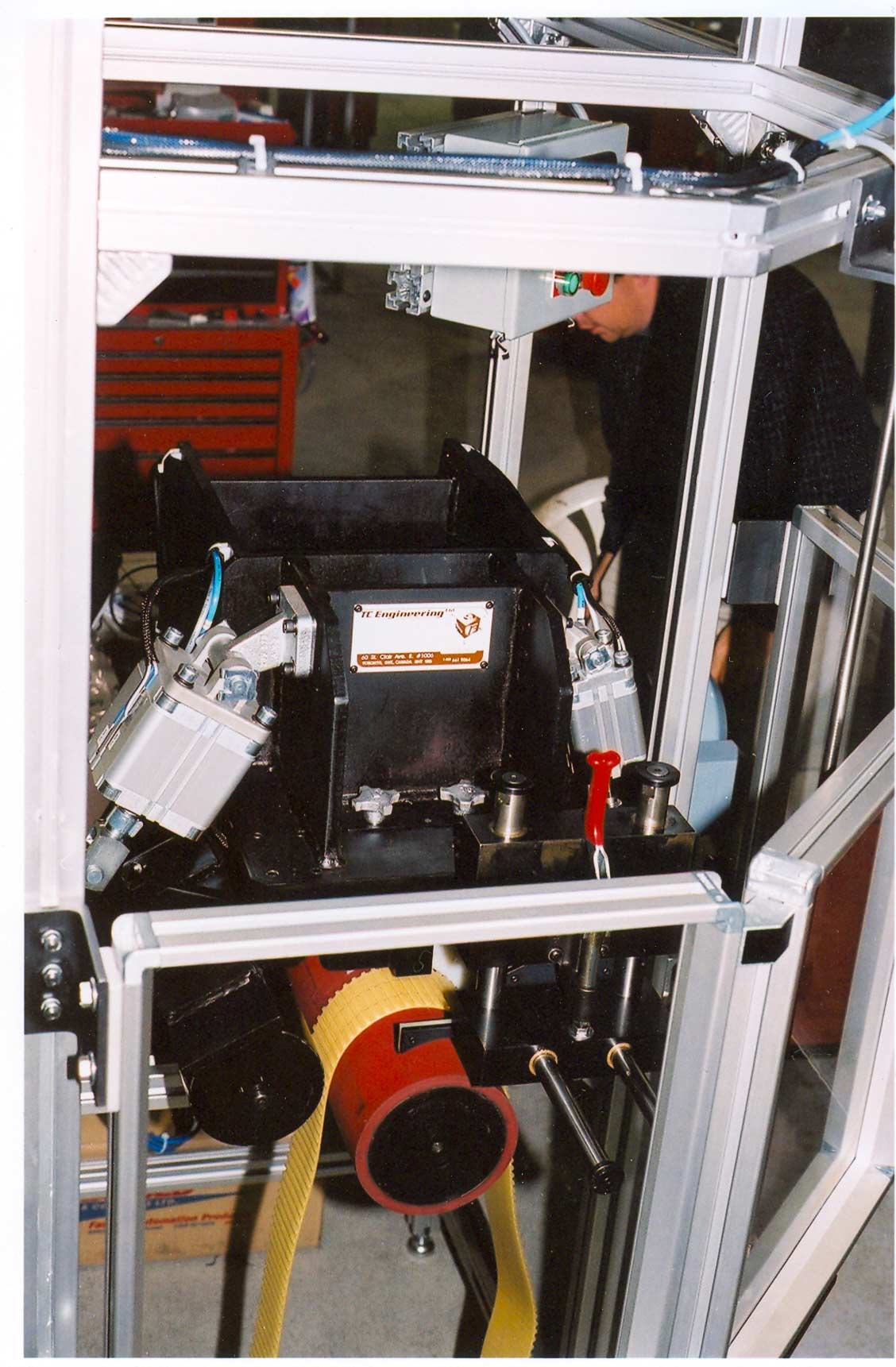

Custom Picture 31.JPG  Closed-up view of the Timing Belt Machine

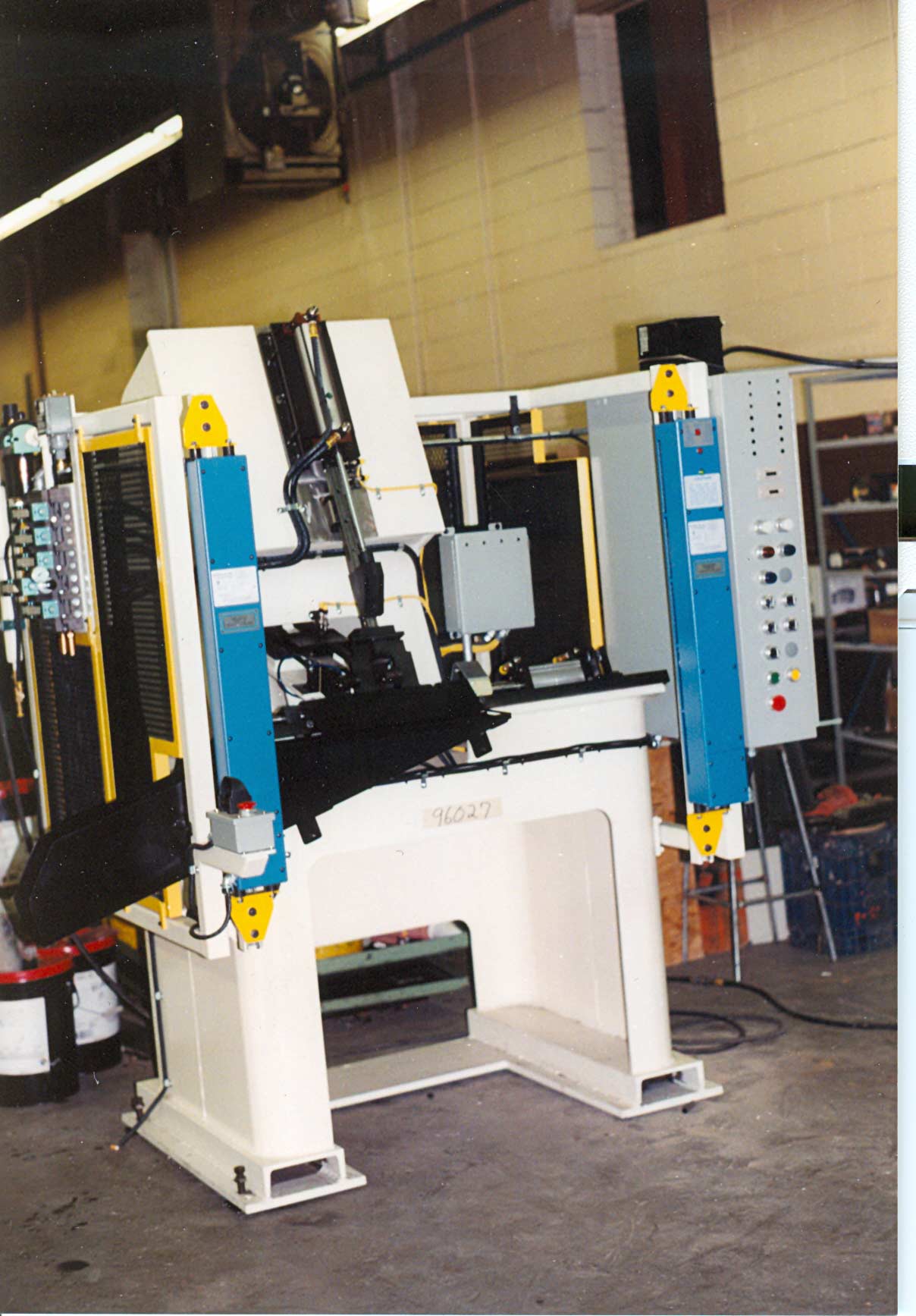

Custum Picture 32.jpg  Glove Compartment Cover Assembly Machine

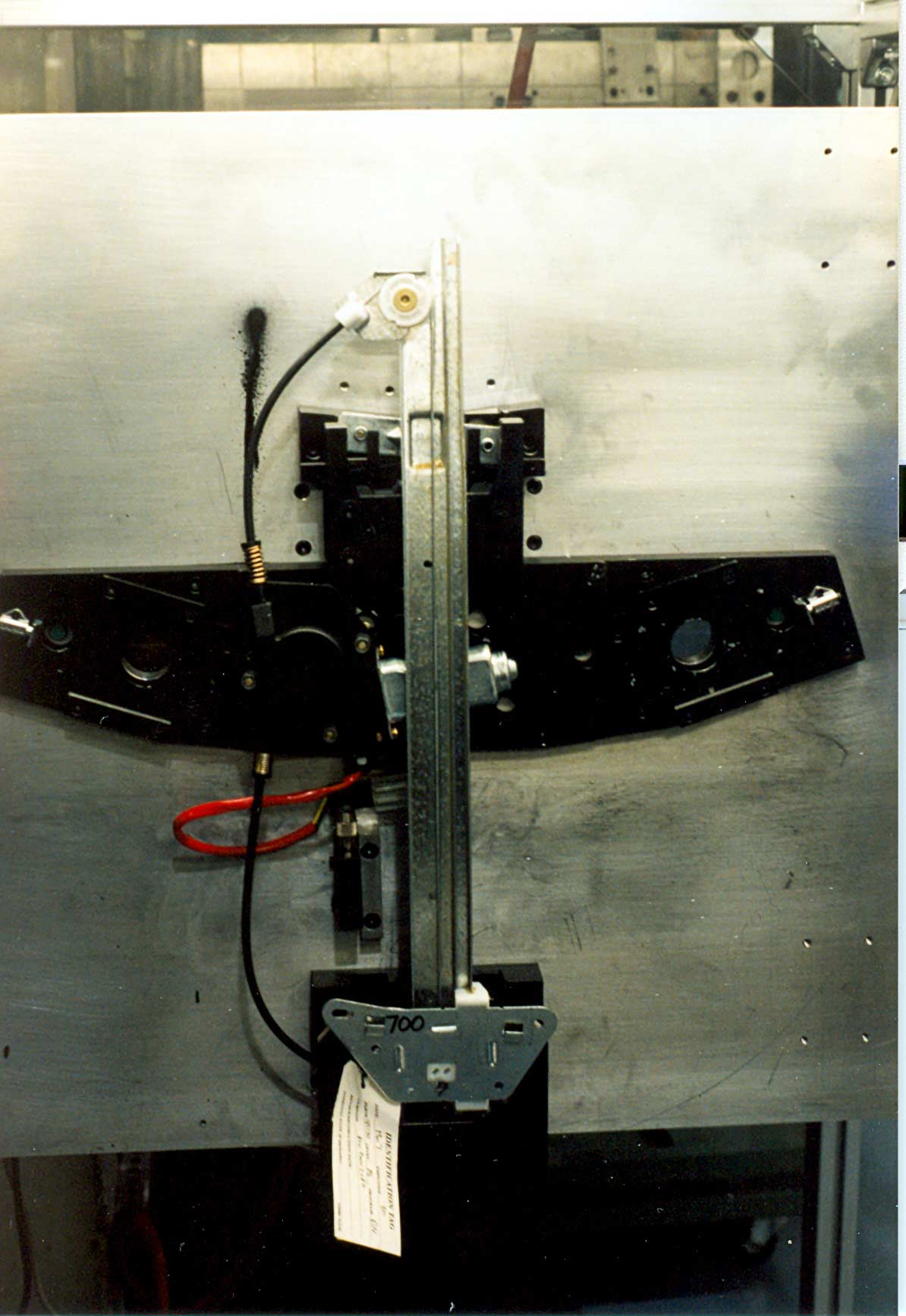

Custom Picture 33.JPG  Car Window Mechanism Assembly Line, Test Station

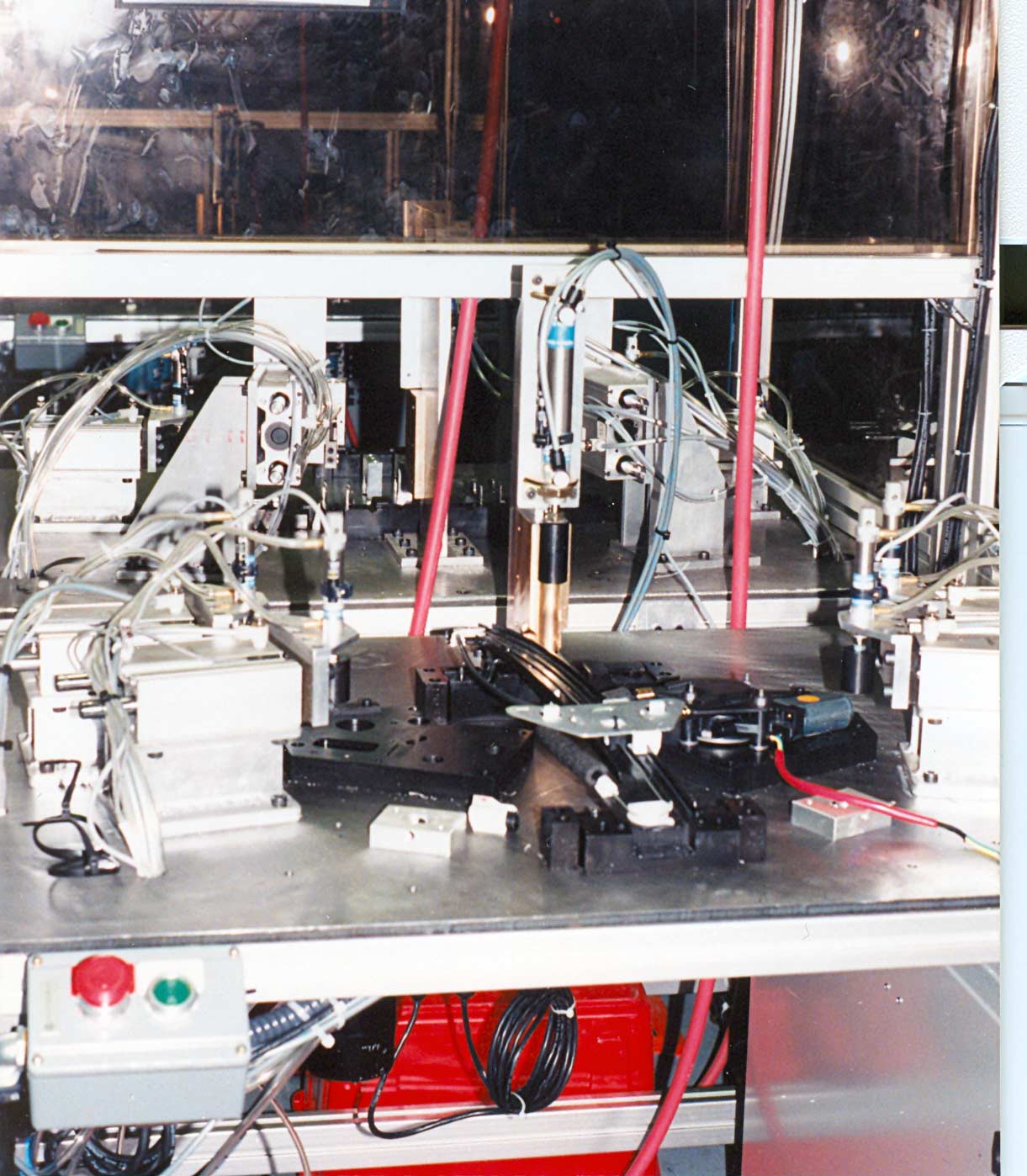

Custom Picture 34.JPG  Car Window Mechanism Assembly Station

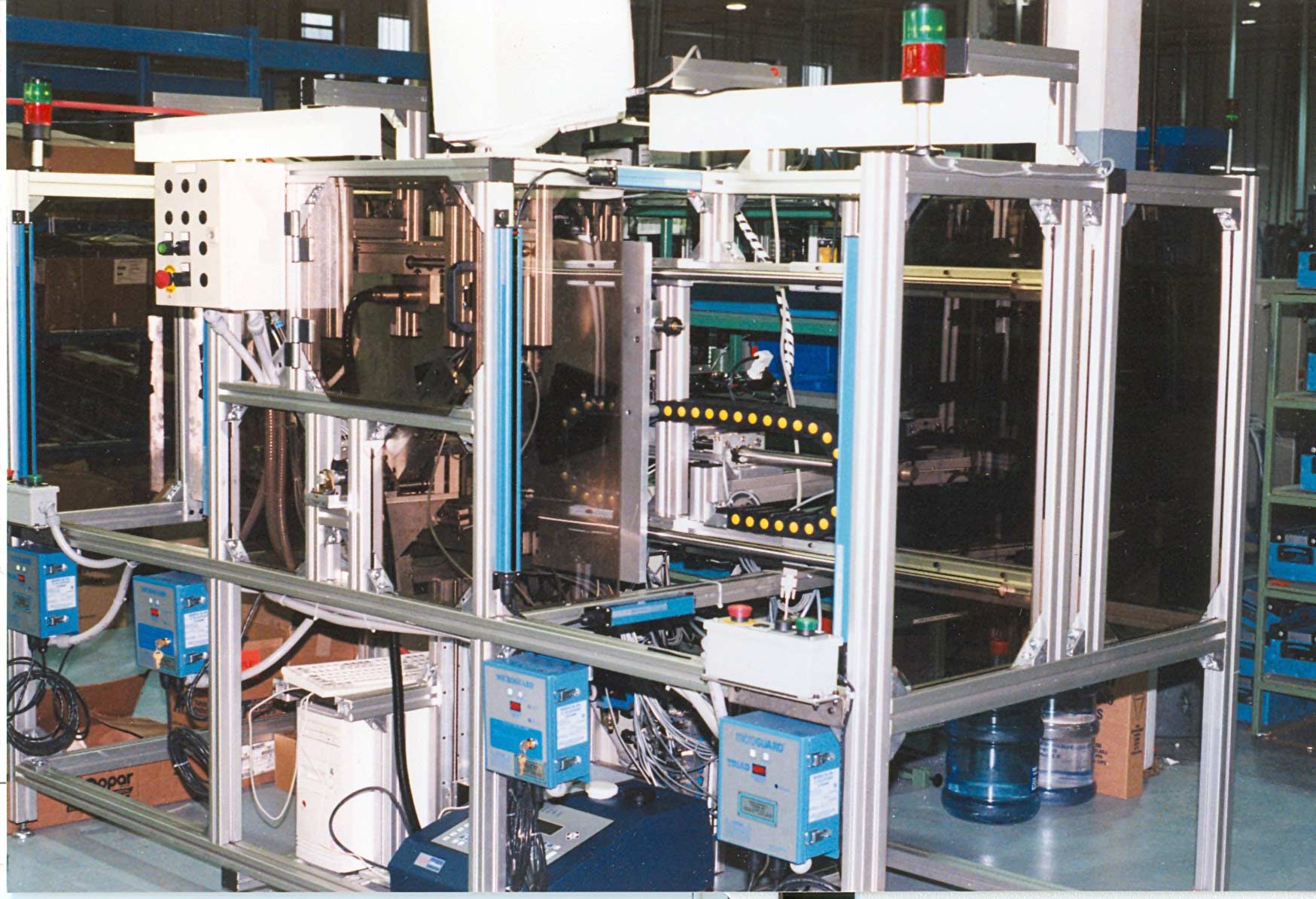

Custom Picture 35.JPG  Car Window Mechanism Test Station
